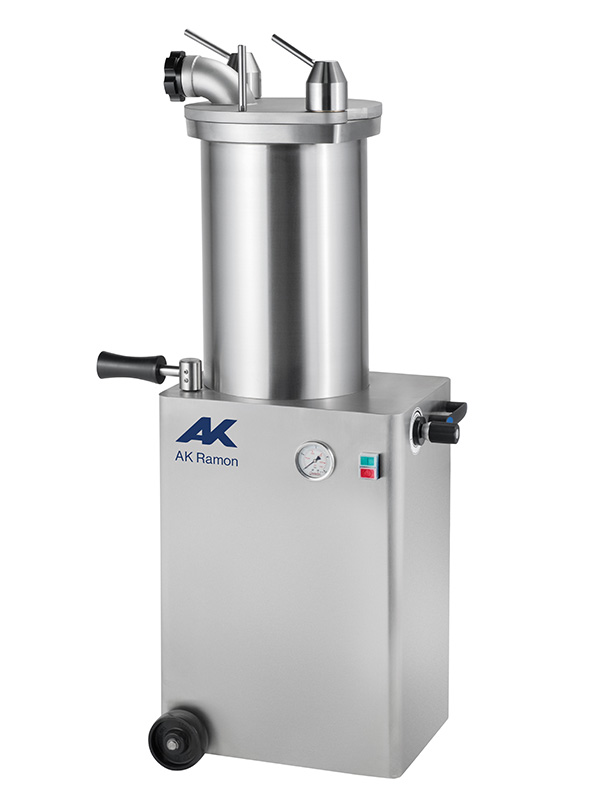

Hydraulic piston filler AK Ramon SC-30 STAR

The SC-30 STAR filler has a capacity of 30 liters.

  • Totally manufactured in AISI 304 stainless steel.
  • Independent oil tank in stainless steel AISI 304.
  • Equipped with control manometer.
  • Equipped with speed regulator.
  • Automatic piston decompression to avoid mass leakage.
  • AISI 304 stainless steel funnels Ø12,20 and 30mm (other sizes on request).
  • Cylinder bottom made of AISI 304 stainless steel, without any screw for easy cleaning.
  • Baseplate and cylinder completely sealed together.



SKU: ID1652 Producent AK RAMON Category:

Options

  • Aluminum cover and piston.
  • Cover and piston in stainless steel AISI 304.
  • Single-phase motor 220V 1 HP/ 0,75 kW.
  • Single-phase motor 220V/1ph/50Hz
  • Single-phase motor 220V/1ph/60Hz
  • Single-phase motor 110V/1ph/60Hz
  • Fixed pedal

Accessories

  • Volumetric portioner
  • Manual or automatic portioner
  • Accessory for meatballs
  • Accessory for making croquettes
  • Accessory for making hamburgers
  • Accessory for kefta
  • Support Wheels

Technical information

Cylinder capacity in liters 30
Cylinder capacity in Kg ± 27
Three-phase motor power HP/Kw 1/0.73
Single-phase motor power HP/Kw 1/0.73
Packing dimensions (mm) 600x800x1500
Net/gross weight (Kg) 158/163



Dimensions

A: 650 B: 1.250 C: 1.192 D: 435 E: 360 F: 820
