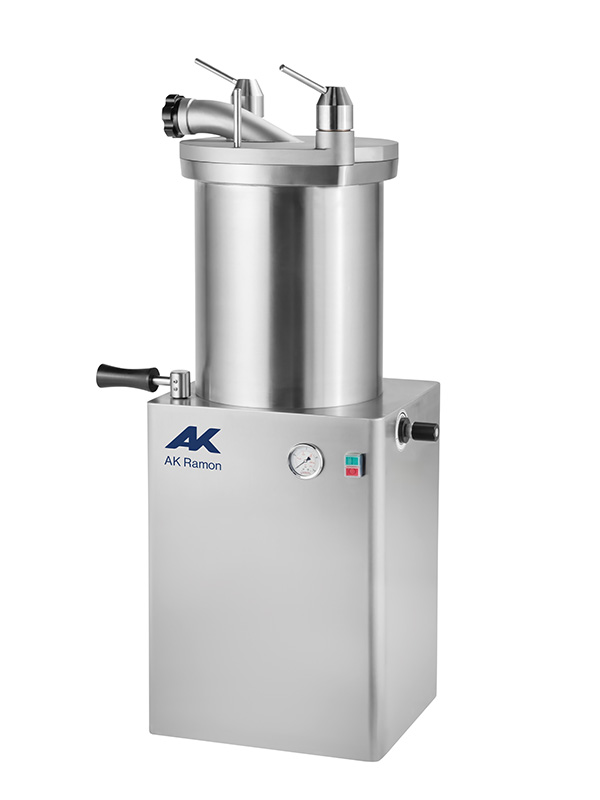

Hydraulic piston filler AK Ramon SC-50 STAR

The SC-50 STAR filler has a capacity of 50 liters.

  • Totally manufactured in AISI 304 stainless steel.
  • Independent oil tank in stainless steel AISI 304.
  • Equipped with control manometer.
  • Equipped with speed regulator.
  • Automatic piston decompression to avoid mass leakage.
  • AISI 304 stainless steel funnels Ø12,20 and 30mm (other sizes on request).
  • Cylinder bottom made of AISI 304 stainless steel, without any screw for easy cleaning.
  • Baseplate and cylinder completely sealed together.
  • Knee control to raise and lower the piston.
  • Equipped with two wheels for easy movement.



SKU: ID1654 Producent AK RAMON Category:

Options

  • Single-phase motor 220V/1ph/60Hz
  • Three-phase motor 220V/3ph/60Hz
  • Fixed pedal

Accessories

  • Volumetric portioner
  • Manual or automatic portioner
  • Accessory for meatballs
  • Accessory for making croquettes
  • Accessory for making hamburgers
  • Accessory for kefta
  • Support Wheels

Technical information

Cylinder capacity in liters 50
Cylinder capacity in Kg ± 44
Three-phase motor power HP/Kw 2/1.5
Packing dimensions (mm) 560x660x1590
Net/gross weight (Kg) 192/203



Dimensions

A: 690 B: 1.345 C: 1.270 D: 478 E: 416 F: 860
